Flow Pack Dm Packaging Superflow 400 Refurbished

At a glance, what it does

DESCRIPTION

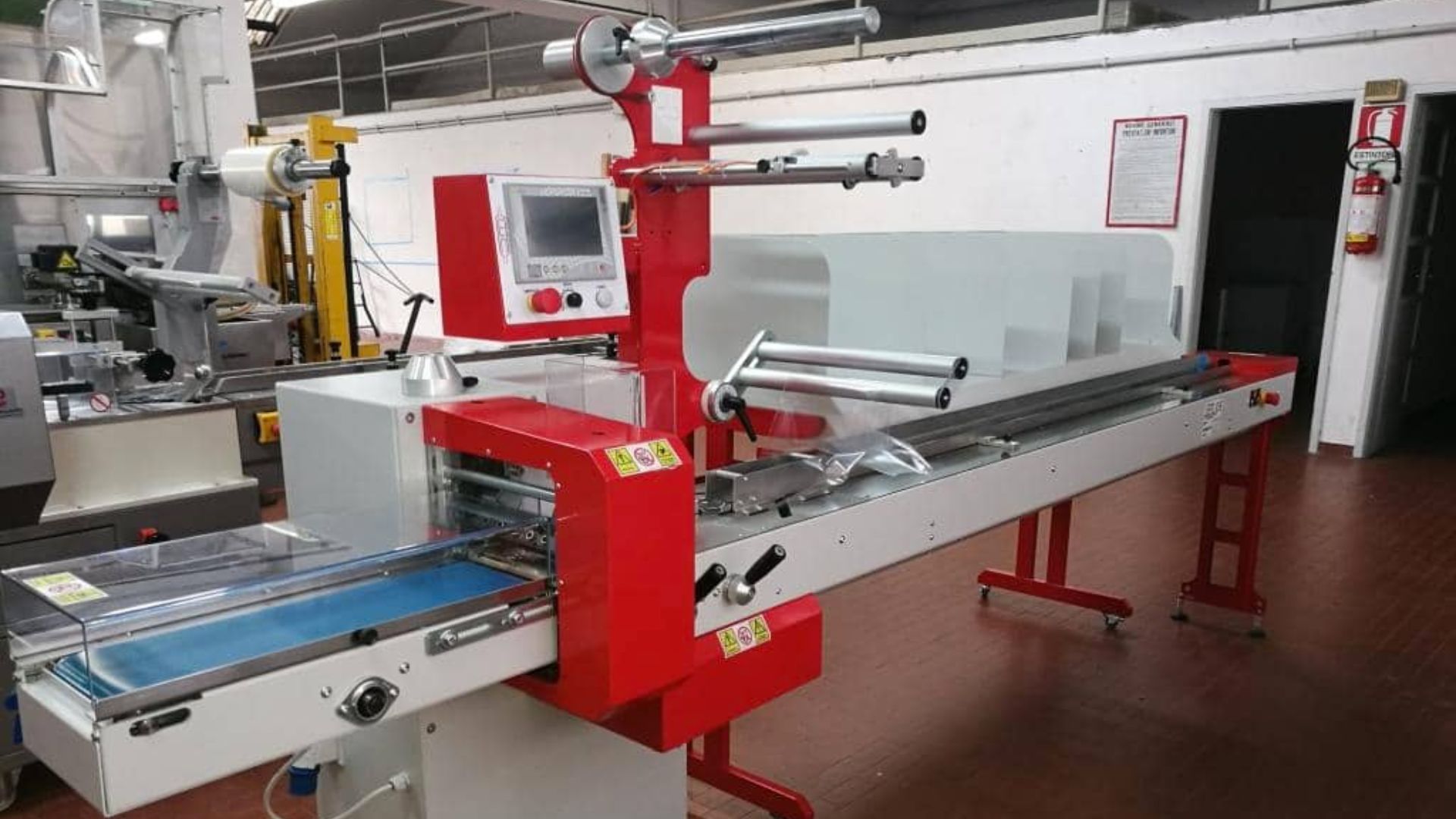

Used and reconditioned packaging machine Flow Pack Dm Packaging Superflow 400 Electronics with three motors with reel from above for the packaging of medium-sized and small-sized products.
The electronic Flow Pack Dm Packaging Superflow 400 packaging machine is a compact horizontal packaging machine particularly suitable for small and medium-sized packages with excellent packaging speed.

Flow Pack Packaging Machine

ACCESSORIES INCLUDED

Notch pitch photocell
Fixed and variable shaping tunnel

For each machine

TECHNICAL SPECIFICATIONS

• Max Reel: 360 mm
• Product: mm 40-200 x 10-160 x h1-60 *
• sealer: 200 mm
• Packaging machine: mm 2800 x 1000 x h1600
• Speed: up to 60ppm
* the measures cannot coexist

REQUEST A QUOTE

In detail, what it does

IN-DEPTH DESCRIPTION

Flow Pack Dm Packaging Superflow 400 Used and reconditioned electronics. Compact horizontal packaging machine, suitable for packaging small and medium-sized products, with a high packaging speed.

Welding on the bottom of the product

This type of flow pack packaging machine carries out a sealing at the top and at the end of the package thanks to the transversal sealer and a longitudinal seal under the product along the entire length. The result obtained is the typical flow pack that we are used to seeing in brioches.

Rotary sealer

The rotary sealer is the most common type of sealer in flow pack packaging machines. It is a sealer composed of two spatulas fixed on two pins that rotate synchronously and which meet only once for each rotation. This type of welding allows for high packaging speeds with minimal cost technical equipment.
It is also possible to increase the packaging capacity by inserting an additional (or more) pair of spatulas to double or quadruple the speed. This option can almost never be implemented on existing machines but is very often used in the design phase of the flow pack packaging machine.

Notch pitch photocell for printed film

A device for reading the printed film notch pitch that allows you to read the position of the notch and to correct the phasing of the envelope so that the sealing always takes place between one notch and another. This method is essential if the package we have to make is printed with a graphic that must always be shown in full.

Many brands to choose from

Dm Packaging

Technology, engineering, Made in Italy, innovation and passion: these elements have conditioned the history of Dm Packaging, studding it with successes and interesting case histories.
These are the elements that have led Dm Packaging Group to be known internationally as one of the reference points in the design and distribution of food product packaging systems for small and large companies.

A BIT OF HISTORY

Dm Packaging Group is a young and dynamic company, highly specialized in the intercontinental packaging sector. A pool of professionals with a single mission: to provide tailor-made structured solutions for automatic packaging.

Among the pages, the documentation

DOCUMENTATION

You can download the technical documentation of the packaging machine by clicking on the link below.
A page will open asking you for an authentication password.
To get the password, fill out the form on the side and we will contact you to provide you with all the documentation you need (if we have it).
